CEN Ejector Needles… an innovative four-point design to minimize die puncture or cracking issues
Needles specifically designed for thin, sensitive die where mechanical damage is a concern.
Precision EDM machined radii ensure consistent and repeatable performance.

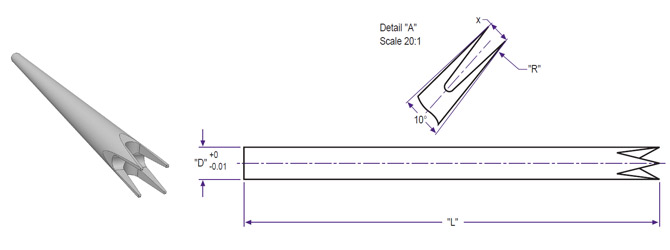

No. | Part No. | L mm | D mm | X | R mm |
---|---|---|---|---|---|
1 | CN05-32-015-12 | 12 | 0.50 | 0.32 | 0.015 |
2 | CN05-32-025-12 | 12 | 0.50 | 0.32 | 0.025 |
3 | CN05-32-050-12 | 12 | 0.50 | 0.32 | 0.050 |
4 | CN05-32-015-17 | 17 | 0.50 | 0.32 | 0.015 |
5 | CN05-32-025-17 | 17 | 0.50 | 0.32 | 0.025 |
6 | CN05-32-050-17 | 17 | 0.50 | 0.32 | 0.050 |
7 | CN05-32-015-19 | 19 | 0.50 | 0.32 | 0.015 |
8 | CN05-32-025-19 | 19 | 0.50 | 0.32 | 0.025 |
9 | CN05-32-050-19 | 19 | 0.50 | 0.32 | 0.050 |
10 | CN07-32-015-12 | 12 | 0.70 | 0.32 | 0.015 |
11 | CN07-32-025-12 | 12 | 0.70 | 0.32 | 0.025 |
12 | CN07-32-050-12 | 12 | 0.70 | 0.32 | 0.050 |
13 | CN07-32-015-17 | 17 | 0.70 | 0.32 | 0.015 |
14 | CN07-32-025-17 | 17 | 0.70 | 0.32 | 0.025 |
15 | CN07-32-050-17 | 17 | 0.70 | 0.32 | 0.050 |
16 | CN07-32-015-19 | 19 | 0.70 | 0.32 | 0.015 |
17 | CN07-32-025-19 | 19 | 0.70 | 0.32 | 0.025 |
18 | CN07-32-050-19 | 19 | 0.70 | 0.32 | 0.050 |
19 | CN07-46-015-12 | 12 | 0.70 | 0.46 | 0.015 |
20 | CN07-46-025-12 | 12 | 0.70 | 0.46 | 0.025 |
21 | CN07-46-050-12 | 12 | 0.70 | 0.46 | 0.050 |
22 | CN07-46-100-12 | 12 | 0.70 | 0.46 | 0.100 |
23 | CN07-46-015-17 | 17 | 0.70 | 0.46 | 0.015 |
24 | CN07-46-025-17 | 17 | 0.70 | 0.46 | 0.025 |
25 | CN07-46-050-17 | 17 | 0.70 | 0.46 | 0.050 |
26 | CN07-46-100-17 | 17 | 0.70 | 0.46 | 0.100 |
27 | CN07-46-015-19 | 19 | 0.70 | 0.46 | 0.015 |
28 | CN07-46-025-19 | 19 | 0.70 | 0.46 | 0.025 |
29 | CN07-46-050-19 | 19 | 0.70 | 0.46 | 0.050 |
30 | CN07-46-100-19 | 19 | 0.70 | 0.46 | 0.100 |
Packing: 20 pieces per plastic box.
