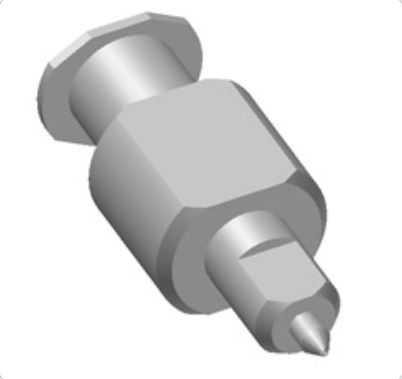

Pen Dispensing Assembly
We manufacture a series of carbide nozzles with a V-groove tip used for precision dispensing with small die applications.

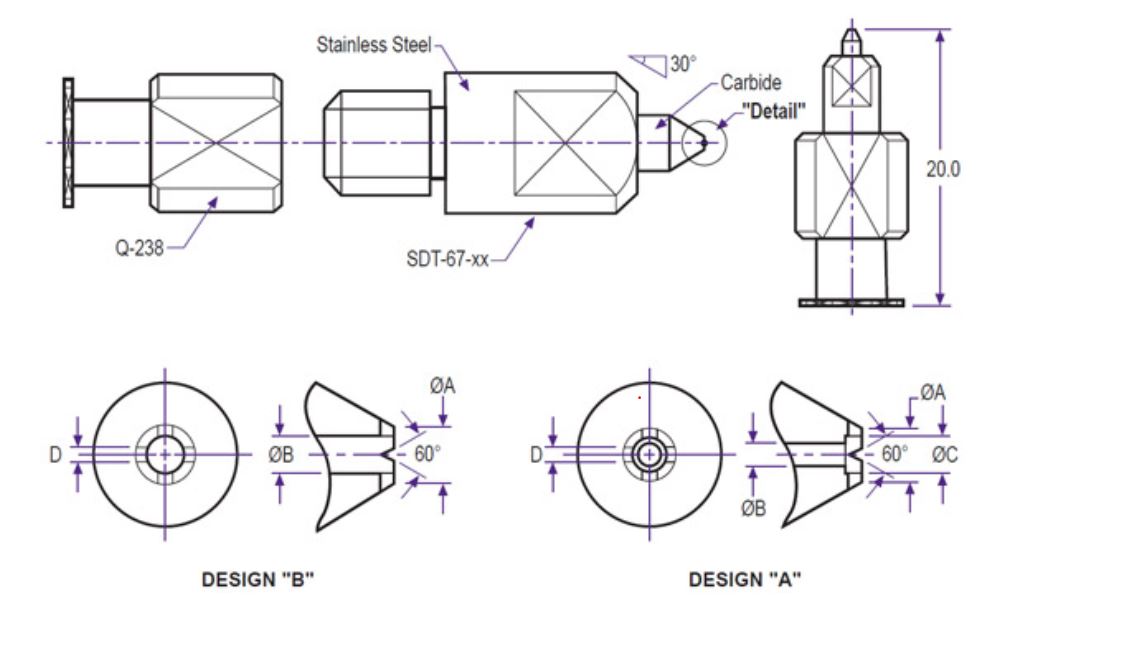

The SDT-67 nozzle tips are used with the Q-238 holder for convenient used with a plastic syringe.
| No. | Part No. | A mm | B mm | A mm | C mm | Design |
|---|---|---|---|---|---|---|
| 1 | Q-238 | Luer Lock Holder | Luer Lock Holder | Fits Q-239-xx | Fits Q-239-xx | Fits Q-239-xx |
| 2 | SDT-67-01 | 0.356 | 0.150 | 0.229 | 0.102 | A |
| 3 | SDT-67-02 | 0.400 | 0.250 | – | 0.102 | B |
| 4 | SDT-67-03 | 0.500 | 0.300 | – | 0.102 | B |
| 5 | SDT-67-xx | Specify | Specify | Specify | Specify | Specify |
