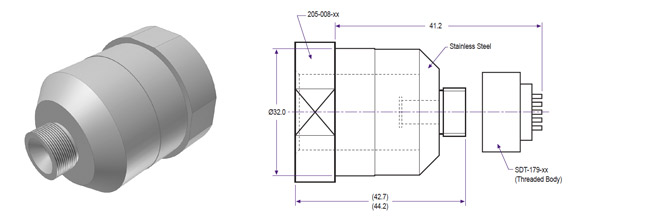

Designed for the ESEC 2005 and 2006 Die-Attach machines for conversion to nozzles with threaded bodies.
| No. | Part No. | Description | Thread | Nozzle |
|---|---|---|---|---|
| 1 | 205-008-01 | Adaptor (ESEC) | M10x1 | SDT-179 |
| 2 | 205-008-02 | Adaptor (ESEC) | M12x1 | SDT-179 |
| 3 | 205-008-03 | Adaptor (ESEC) | M16x1 | SDT-179 |
| 4 | 205-008-04 | Adaptor (ESEC) | M20x1 | SDT-179 |
| 5 | 205-008-05 | Adaptor (ESEC) | M26x1 | SDT-179 |
| 6 | 205-007-01 | Adaptor (ESEC) | M10x1 | SDT-36 |
| 7 | 205-007-02 | Adaptor (ESEC) | M14x1 | SDT-36 |
| 8 | 205-007-01 | Adaptor (ESEC) | M10x1 | SDT-232 |
