Adhesive Writing Pen/ Nozzles Tip

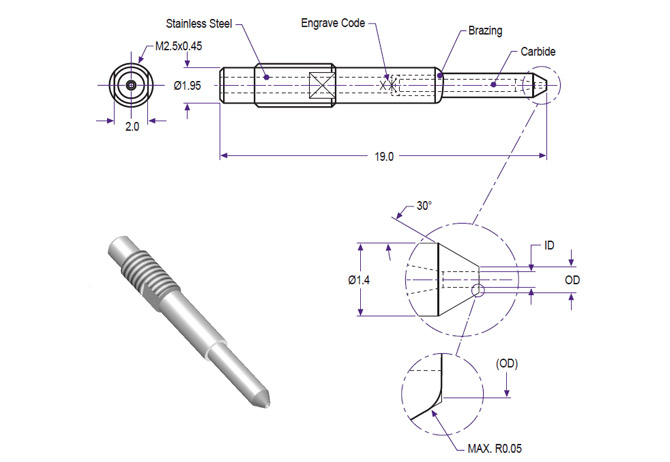

We manufacture a series of adhesive writing pens used on the ESEC 2007 die-attach machine. Our most popular pen is the low-cost SDT-309 which replaces the original tungsten carbide tip with our standard nozzle tubing.
| No. | Part No. | OD Inch | OD mm | ID Inch | ID mm |
|---|---|---|---|---|---|
| 1 | SDT-345A-01 | .012 | 0.30 | .006 | 0.15 |
| 2 | SDT-345A-02 | .014 | 0.35 | .008 | 0.20 |
| 3 | SDT-345A-03 | 016 | 0.40 | .010 | 0.25 |
| 4 | SDT-345A-04 | 020 | 0.50 | .012 | 0.30 |
| 5 | SDT-345A-05 | 022 | 0.55 | .014 | 0.35 |
| 6 | SDT-345A-06 | 024 | 0.60 | .016 | 0.40 |
| 7 | SDT-345A-07 | 018 | 0.45 | .012 | 0.30 |
| 8 | SDT-345A-08 | .008 | 0.20 | .005 | 0.12 |
| 9 | SDT-345A-09 | .014 | 0.35 | .010 | 0.25 |
| 10 | SDT-345A-10 | .022 | 0.55 | .016 | 0.40 |
