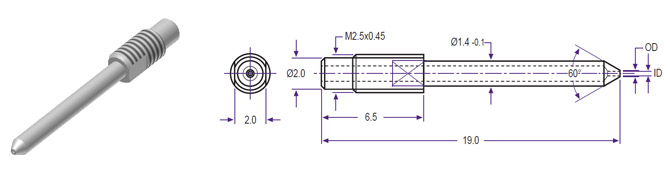

Adhesive Writing Pen/Nozzles Tip
(One-Piece Stainless Steel Pen)

We manufacture a series of adhesive writing pens used on the ESEC 2007 die-attach machine. Our most popular pen is the low-cost SDT-309 which replaces the original tungsten carbide tip with our standard nozzle tubing.

No. Part No. OD Inch OD mm ID Inch ID mm
1 SDT-350-02 0.019 0.50 .012 0.30
2 SDT-350-03 0.024 0.60 .016 0.40
3 SDT-350-04 0.031 0.80 .019 0.50
4 SDT-350-05 0.035 0.90 .024 0.60
5 SDT-350-06 0.039 1.00 .028 0.70
6 SDT-350-07 0.047 1.20 .031 0.80
7 SDT-350-08 0.051 1.30 .036 0.90
8 SDT-350-09 0.055 1.40 .039 1.00
9 SDT-350-10 0.055 1.40 .012 0.30
