Adhesive Writing Pen/Nozzles Tip

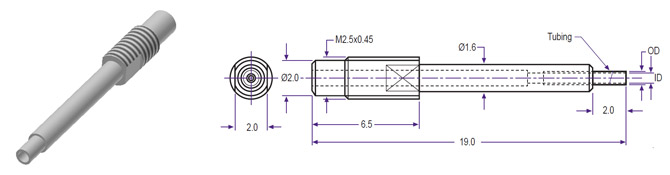

We manufacture a series of adhesive writing pens used on the ESEC 2007 die-attach machine. Our most popular pen is the low-cost SDT-309 which replaces the original tungsten carbide tip with our standard nozzle tubing.
| No. | Part No. | Gauge | OD Inch | OD mm | ID Inch | ID mm |
|---|---|---|---|---|---|---|
| 1 | SDT-309-01 | 18G | .049 | 1.25 | .035 | 0.90 |
| 2 | SDT-309-02 | 19G | .042 | 1.08 | .030 | 0.75 |
| 3 | SDT-309-03 | 20G | .035 | 0.90 | .026 | 0.65 |
| 4 | SDT-309-04 | 21G | .032 | 0.82 | .020 | 0.50 |
| 5 | SDT-309-05 | 22G | .028 | 0.72 | .018 | 0.45 |
| 6 | SDT-309-06 | 23G | .025 | 0.65 | .016 | 0.40 |
| 7 | SDT-309-07 | 24G | .022 | 0.56 | .014 | 0.35 |
| 8 | SDT-309-08 | 25G | .020 | 0.50 | .010 | 0.25 |
