We manufacture a series of adhesive writing pens used on the Alphasem Swissline die-attach machine. Our most popular pen is the low-cost SDT-280 which uses our standard nozzle tubing.

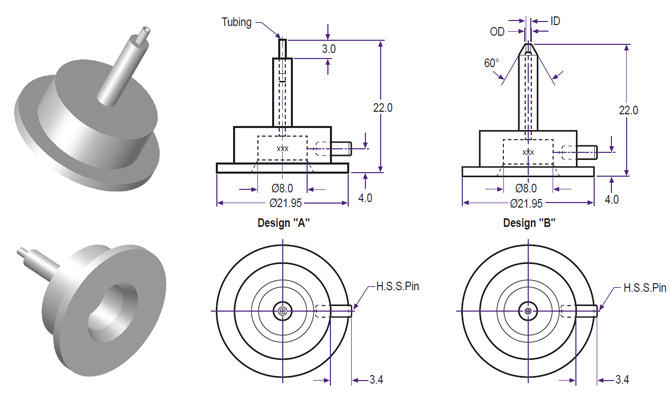

| No. | Part No. | Tubing | OD mm | ID mm | Design |
|---|---|---|---|---|---|
| 1 | SDT-280-01 | 18G | 1.25 | 0.90 | A |
| 2 | SDT-280-02 | 19G | 1.08 | 0.75 | A |
| 3 | SDT-280-03 | 20G | 0.90 | 0.65 | A |
| 4 | SDT-280-04 | 21G | 0.82 | 0.50 | A |
| 5 | SDT-280-05 | 22G | 0.72 | 0.45 | A |
| 6 | SDT-280-06 | 23G | 0.65 | 0.40 | A |
| 7 | SDT-280-07 | 24G | 0.56 | 0.35 | A |
| 8 | SDT-280-08 | – | 1.20 | 0.70 | B |
| 9 | SDT-280-09 | – | 1.20 | 1.00 | B |
| 10 | SDT-280-xx | Specify | Specify | Specify | Specify |
