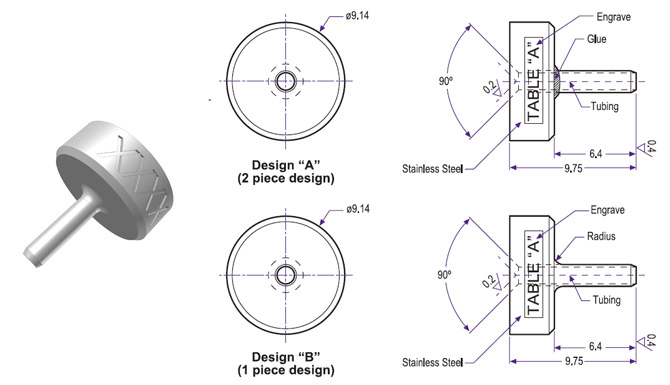

We design and manufacture high precision dispensing nozzles used in flip-chip underfill and package encapsulation applications. Precision tolerances, together with a smooth, concentric tip taper, improve dispensing consistency.
| No. | Part No. | Table “A” | OD | ID | Design | Remarks |
|---|---|---|---|---|---|---|
| 1 | SDT-1147-01 | 28G | 0.36 | 0.18 | A | – |
| 2 | SDT-1147-02 | 27G | 0.40 | 0.20 | A | – |
| 3 | SDT-1147-03 | 25G | 0.50 | 0.25 | A | – |
| 4 | SDT-1147-04 | 23G/1 | 0.64 | 0.36 | A | – |
| 5 | SDT-1147-05 | 22G | 0.72 | 0.45 | A | – |
| 6 | SDT-1147-06 | 21G | 0.82 | 0.50 | A | – |
| 7 | SDT-1147-07 | 20G/1 | 0.99±0.02 | 0.56±0.02 | B | – |
| 8 | SDT-1147-08 | 18G | 1.27±0.02 | 0.84±0.02 | B | – |
| 9 | SDT-1147-12 | 14G | 2.10±0.02 | 1.60±0.02 | B | – |
| 10 | SDT-1147-14 | 12G | 2.55±0.02 | 2.15±0.02 | B | – |
| 11 | SDT-1147-16 | 23G | 0.65 | 0.40 | A | – |
| 12 | SDT-1147-17 | 26G | 0.45 | 0.21 | A | – |
| 13 | SDT-1147-18 | 30G | 0.30 | 0.15 | A | – |
| 14 | SDT-1147-19 | 32G | 0.23 | 0.10 | A | – |
| 15 | SDT-1147-20 | 22G | 0.72 | 0.45 | A | – |
| 16 | SDT-1147-21 | 24G | 0.56 | 0.35 | A | – |
| 17 | SDT-1147-16 | 17G | 1.49 | 1.11 | A | – |
| 18 | SDT-1147-16 | 18G | 1.25 | 0.90 | A | – |
| 19 | SDT-1147-16 | 19G | 1.08 | 0.75 | A | – |
| 20 | SDT-1147-16 | 20G | 0.72 | 0.45 | A | Customer Request |
| 21 | SDT-1147-16 | 20G/1 | 0.99 | 0.56 | A | – |
| 22 | SDT-1147-16 | 14G | 2.10 | 1.64 | A | – |
| 23 | SDT-1147-16 | 12G | 2.75 | 2.18 | A | – |
| 24 | SDT-1147-16 | 23SG | 0.64 | 0.33 | A | – |
| 25 | SDT-1147-16 | 19G | 1.08±0.02 | 0.75±0.02B | B | – |
