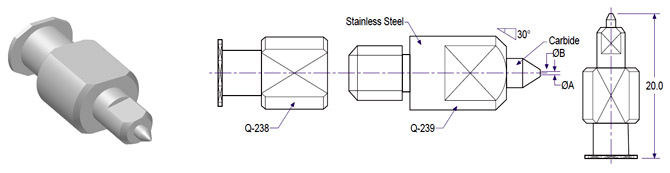

We manufacture a series of carbide nozzle tips used for precision dispensing with small die applications. The SDT-267 nozzle tips are used with the Q-238 holder for convenient use with a plastic syringe.
| No. | Part No. | Description | A Inch | A mm | B Inch | B mm |
|---|---|---|---|---|---|---|
| 1 | Q-238 | Luer Lock Holder | Fits Q-239-xx | Fits Q-239-xx | Fits Q-239-xx | Fits Q-239-xx |
| 2 | Q-239-1 | Carbide Nozzle Tip | .012 | 0.30 | .006 | 0.15 |
| 3 | Q-239-2 | Carbide Nozzle Tip | .014 | 0.35 | .008 | 0.20 |
| 4 | Q-239-3 | Carbide Nozzle Tip | .016 | 0.40 | .010 | 0.25 |
| 5 | Q-239-4 | Carbide Nozzle Tip | .010 | 0.25 | .006 | 0.15 |
| 6 | Q-239-5 | Carbide Nozzle Tip | .010 | 0.25 | .005 | 0.12 |
| 7 | Q-239-6 | Carbide Nozzle Tip | .012 | 0.30 | .008 | 0.20 |
| 8 | Q-239-7 | Carbide Nozzle Tip | .028 | 0.70 | .008 | 0.20 |
| 9 | Q-239-8 | Carbide Nozzle Tip | .028 | 0.70 | .006 | 0.15 |
| 10 | Q-239-9 | Carbide Nozzle Tip | .016 | 0.40 | .008 | 0.20 |
| 11 | Q-239-10 | Carbide Nozzle Tip | .020 | 0.50 | .010 | 0.25 |
| 12 | Q-239-xx | Carbide Nozzle Tip | Specify | Specify | Specify | Specify |
