Epoxy Pin Stamping Tools

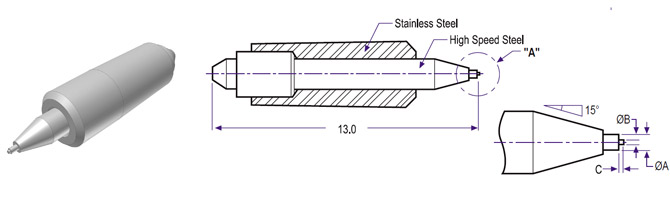

We design and manufacture epoxy pin stamping tools for small-die applications. The high precision tip, including a precision standoff(ØB), help control the amount and height of adhesive “stamped” on the substrate, thereby improving process quality.
| No. | Part No. | A | B | C | |||
|---|---|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Inch | mm | ||
| 1 | Q-004A-01 | .010 | 0.254 | .004 | 0.102 | .004 | 0.102 |
| 2 | Q-004A-02 | .012 | 0.305 | .005 | 0.127 | .004 | 0.102 |
| 3 | Q-004A-03 | .014 | 0.356 | .006 | 0.152 | .004 | 0.102 |
| 4 | Q-004A-04 | .012 | 0.305 | .004 | 0.102 | .004 | 0.102 |
| 5 | Q-004A-05 | .014 | 0.356 | .004 | 0.102 | .004 | 0.102 |
| 6 | Q-004A-06 | .016 | 0.406 | .004 | 0.102 | .004 | 0.102 |
| 7 | Q-004A-07 | .014 | 0.350 | .004 | 0.100 | .002 | 0.050 |
| 8 | Q-004A-08 | .020 | 0.500 | .004 | 0.100 | .002 | 0.050 |
| 9 | Q-004A-09 | .012 | 0.305 | .005 | 0.127 | .005 | 0.127 |
| 10 | Q-004A-10 | .020 | 0.500 | .006 | 0.152 | .004 | 0.102 |
| 11 | Q-004A-11 | .030 | 0.750 | .006 | 0.152 | .004 | 0.102 |
| 12 | Q-004A-12 | .039 | 1.000 | .006 | 0.152 | .004 | 0.102 |
| 13 | Q-004A-13 | .016 | 0.406 | .006 | 0.152 | .004 | 0.102 |
| 14 | Q-004A-14 | .018 | 0.457 | .006 | 0.152 | .004 | 0.102 |
| 15 | Q-004A-15 | .008 | 0.203 | .003 | 0.076 | .003 | 0.076 |
| 16 | Q-004A-16 | .008 | 0.203 | .003 | 0.076 | .004 | 0.102 |
| 17 | Q-004A-17 | .019 | 0.480 | .006 | 0.150 | .004 | 0.102 |
| 18 | Q-004A-xx | Specify | Specify | Specify | Specify | Specify | Specify |
