Epoxy Stamping Tools (88 Series) – Page 1

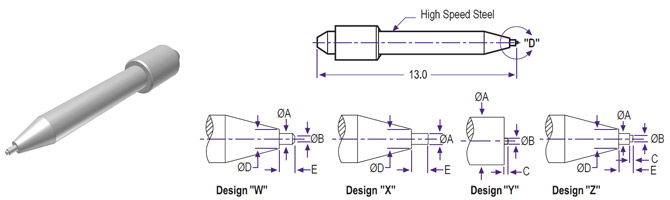

We design and manufacture epoxy pin stamping tools for small-die applications. The high precision tip, including a precision stand-off (ØB), help control the amount and height of adhesive “stamped” on the substrate, thereby improving process quality.

No. Part No. A B C Design
Inch mm Inch mm Inch mm
1 88-001-01 .010 0.254 .004 0.102 .004 0.102 Z
2 88-001-02 .012 0.305 .005 0.127 .004 0.102 Z
3 88-001-03 .014 0.356 .006 0.152 .004 0.102 Z
4 88-001-04 .012 0.305 .004 0.102 .004 0.102 Z
5 88-001-05 .014 0.356 .004 0.102 .004 0.102 Z
6 88-001-06 .016 0.406 .004 0.102 .004 0.102 Z
7 88-001-07 .014 0.350 .004 0.100 .002 0.050 Z
8 88-001-08 .020 0.500 .004 0.100 .002 0.050 Z
9 88-001-09 .043 1.100 .006 0.150 .004 0.102 Z
10 88-001-10 .019 0.470 .006 0.152 .004 0.102 Z
11 88-001-11 .016 0.400 .006 0.160 .006 0.150 Z
12 88-001-12 .016 0.400 .006 0.152 .002 0.050 Z
13 88-001-13 .035 0.900 .006 0.150 .004 0.102 Z
14 88-001-14 .051 1.300 .006 0.150 .004 0.102 Z
15 88-001-15 .010 0.250 .004 0.100 .002 0.050 Z
16 88-001-16 .010 0.250 .004 0.100 .001 0.025 Z
17 88-001-17 .010 0.250 .004 0.100 .001 0.037 Z
18 88-001-18 .008 0.200 .004 0.100 .004 0.100 Z
19 88-001-19 .009 0.230 .004 0.100 .004 0.100 Z
20 88-001-20 .010 0.250 .004 0.100 .004 0.100 Z
21 88-001-21 .024 0.600 .004 0.100 .004 0.100 Z
22 88-001-22 .024 0.600 .004 0.100 .002 0.050 Z
23 88-001-23 .059 1.500 .008 0.200 .004 0.100 Z
24 88-001-24 .018 0.450 .004 0.100 .004 0.100 Z
25 88-001-25 .022 0.550 .004 0.100 .004 0.100 Z
26 88-001-26 .033 0.850 .004 0.100 .004 0.100 Z
27 88-001-27 .014 0.356 .006 0.152 .002 0.050 Z
28 88-001-28 .003 0.076 .001 0.025 .002 0.040 Z
29 88-001-29 .039 1.000 .006 0.150 .004 0.100 Z
30 88-001-30 .014 0.350 .003 0.080 .002 0.050 Z
31 88-001-31 .012 0.305 .004 0.102 .002 0.051 Z
32 88-001-32 .006 0.150 .003 0.070 .004 0.100 Z
33 88-001-33 .008 0.200 .003 0.070 .004 0.100 Z
34 88-001-34 .028 0.711 .022 0.559 .006 0.152 Z
35 88-001-35 .006 0.150 .003 0.080 .004 0.100 Z
