Epoxy Stamping Tools (88 Series) – Page 2

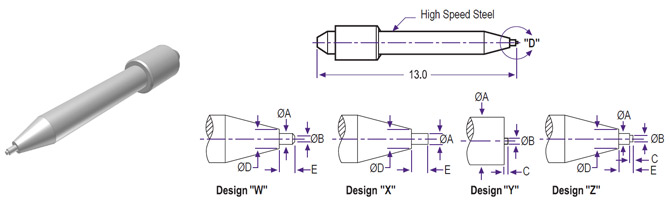

We design and manufacture epoxy pin stamping tools for small-die applications. The high precision tip, including a precision stand-off (ØB), help control the amount and height of adhesive “stamped” on the substrate, thereby improving process quality.

No. Part No. A B C Design
Inch mm Inch mm Inch mm
1 88-001-36 .008 0.200 .003 0.080 .004 0.100 Z
2 88-001-37 .006 0.150 .002 0.050 .004 0.100 Z
3 88-001-38 .030 0.750 .022 0.565 .004 0.102 Z
4 88-001-39 .029 0.730 .023 0.580 .006 0.152 Z
5 88-001-40 .024 0.610 .022 0.559 .002 0.050 Z
6 88-001-41 .024 0.610 X
7 88-001-42 .031 0.787 .029 0.736 .002 0.050 Z
8 88-001-43 .039 1.000 .004 0.100 .002 0.050 Z
9 88-001-44 .015 0.381 X
10 88-001-45 .013 0.330 X
11 88-001-46 .004 0.100 . X
12 88-001-47 .010 0.254 .002 0.050 .002 0.063 Z
13 88-001-48 .020 0.500 .006 0.150 .004 0.100 Z
14 88-001-49 .010 0.254 .004 0.094 W
15 88-001-50 .010 0.254 .004 0.102 W
16 88-001-51 .012 0.305 .003 0.076 .004 0.102 Z
17 88-001-52 .010 0.254 .003 0.076 .004 0.102 Z
18 88-001-53 .018 0.450 .004 0.100 .002 0.050 Z
19 88-001-54 .010 0.254 .004 0.100 .010 0.250 Z
20 88-001-55 .012 0.305 .006 0.150 .010 0.250 Z
21 88-001-56 .031 0.800 .004 0.100 .002 0.050 Z
22 88-001-57 .014 0.356 .006 0.152 .006 0.150 Z
23 88-001-58 .014 0.356 .006 0.152 .008 0.200 Z
24 88-001-59 .012 0.305 X
25 88-001-60 .014 0.360 .006 0.150 .004 0.102 Z
26 88-001-61 .059 1.500 .055 1.400 .004 0.102 Y
27 88-001-62 .041 1.050 .002 0.050 .002 0.050 Z
28 88-001-63 .014 0.358 .004 0.102 .004 0.102 Z
29 88-001-64 .012 0.300 .003 0.064 .003 0.064 Z
30 88-001-65 .035 0.900 .004 0.100 .004 0.100 Z
31 88-001-66 .031 0.800 .004 0.100 .004 0.100 Z
32 88-001-67 .035 0.900 .002 0.100 .000 0.050 Z
33 88-001-68 .005 0.127 .004 0.050 .004 0.100 Z
34 88-001-69 .039 1.00 .002 0.050 .002 0.050 Z
