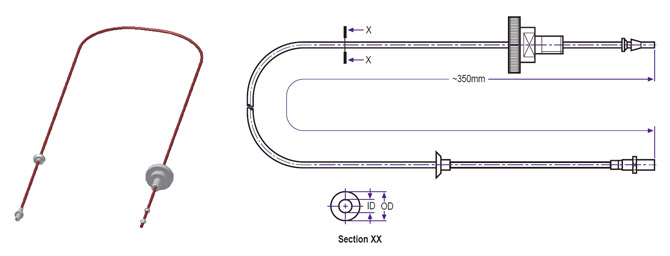

We manufacture a Pen Dispensing Assembly used on the ESEC 2007 programmable adhesive dispenser. The 200-014 dispensing assembly is used with our SDT-350, SDT-345 and SDT-309 adhesive writing pens.
| No. | Part No. | OD x ID mm | OD x ID mils | Color |
|---|---|---|---|---|
| 1 | 200-014-01 | 1.58 x 0.70 | 0.062 x 0.028 | Green |
| 2 | 200-014-02 | 1.58 x 1.00 | 0.062 x 0.039 | Brown |
| 3 | 200-014-03 | 1.58 x 0.51 | 0.062 x 0.020 | Green |
| 4 | 200-130-01 | 3.12 x 1.60 | 0.123 x 0.063 | Clear |
