Groove Dispensing Nozzles

We design and manufacture a number of groove-type dispensing nozzles, especially suitable for small-die applications.

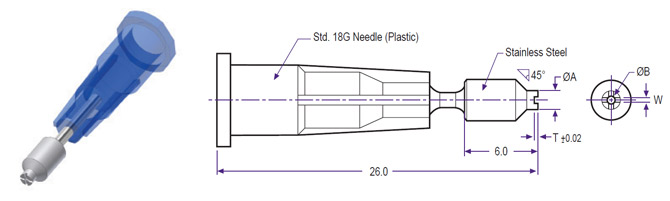

No.	Part No.	A Inch	A mm	B Inch	B Inch	W mm	W Inch	T mm	T Inch
1	SDT-51-02	.040	1.02	.018	0.45	.012	0.30	.001	0.25
2	SDT-51-03	.050	1.27	.024	0.60	.016	0.40	.012	0.30
3	SDT-51-04	.060	1.52	.024	0.60	.016	0.40	.014	0.35
4	SDT-51-05	.070	1.78	.024	0.60	.016	0.40	.015	0.38
5	SDT-51-06	.110	2.79	.024	0.60	.024	0.60	.015	0.38
6	SDT-51-07	.120	3.05	.024	0.60	.024	0.60	.015	0.38
7	SDT-51-xx	Specify	Specify	Specify	Specify	Specify	Specify	Specify	Specify
