High-Temperature Plastic Pick-up Tools (Shinkawa)

11 Series High-Temperature Plastic
a breakthrough in manufacturing low-cost, ultra-fine plastic tools

Using proprietary automatic manufacturing technology, we manufacture extremely fine plastic tools for die attach of transistor, LED and other small die applications. Pick-up tools with tip sizes as small as 0.20 x 0.10mm (8 x 4 mils) OD x ID, together with materials which withstand 480 deg. C., allow these tools to be used for both eutectic and epoxy die attach.



Material Code : 11 (Brown) 11A (Black)

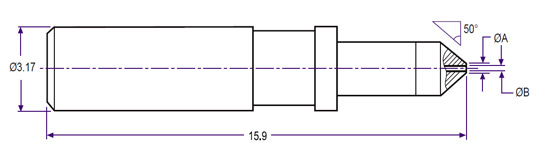

No. Part No. A Inch A mm B Inch B mm
1 11-013-01 0.015 0.38 0.007 0.18
2 11-013-02 0.020 0.51 0.008 0.20
3 11-013-03 0.012 0.30 0.006 0.15
4 11-013-04 0.010 0.25 0.004 0.10
5 11-013-05 0.010 0.25 0.006 0.15
6 11-013-06 0.025 0.60 0.012 0.30
7 11-013-07 0.030 0.76 0.016 0.40
8 11-013-08 0.050 1.25 0.028 0.70
9 11-013-09 0.013 0.33 0.006 0.15
10 11-013-xx Specify Specify Specify Specify
