High-Temperature Plastic Pick-Up Tools(ESEC)

11 Series High-Temperature Plastic
a breakthrough in manufacturing low-cost, ultra-fine plastic tools

Using proprietary automatic manufacturing technology, we manufacture extremely fine plastic tools for die attach of transistor, LED and other small die applications. Pick-up tools with tip sizes as small as 0.20 x 0.10mm (8 x 4 mils) OD x ID, together with materials which withstand 480 deg. C., allow these tools to be used for both eutectic and epoxy die attach.



Note : No.1 – 14 are Standard Sizes.
No.15 – 21 are Custom Sizes.
Material Code : 11(Brown) 11A(Black)

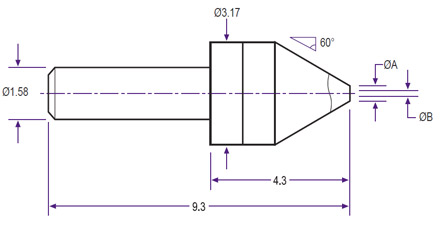

No. Part No. A Inch A mm B Inch B mm
1 11-031-01 0.012 0.30 0.006 0.15
2 11-031-02 0.015 0.40 0.007 0.18
3 11-031-03 0.020 0.50 0.008 0.20
4 11-031-04 0.030 0.75 0.016 0.30
5 11-031-05 0.025 0.60 0.012 0.40
6 11-031-06 0.040 1.00 0.020 0.50
7 11-031-07 0.050 1.25 0.028 0.70
8 11-031-08 0.060 1.50 0.035 0.90
9 11-031-09 0.070 1.75 0.047 1.20
10 11-031-10 0.080 2.00 0.055 1.40
11 11-031-11 0.090 2.25 0.063 1.60
12 11-031-12 0.100 2.50 0.070 1.80
13 11-031-13 0.110 2.75 0.079 2.00
14 11-031-14 0.120 3.00 0.079 2.00
15 11-031-15 0.018 0.45 0.008 0.20
16 11-031-16 0.010 0.25 0.006 0.15
17 11-031-17 0.010 0.25 0.004 0.10
18 11-031-18 0.008 0.20 0.004 0.10
19 11-031-19 0.020 0.50 0.010 0.25
20 11-031-20 0.012 0.30 0.007 0.18
21 11-031-xx Specify Specify Specify Specify

Feel free to contact us for any enquiry

Email us with any questions or inquiries. We would be happy to answer your questions and set up a meeting with you.
