11 Series High-Temperature Plastic
a breakthrough in manufacturing low-cost, ultra-fine plastic tools

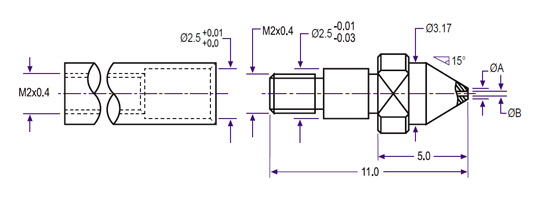

Using proprietary automatic manufacturing technology, we manufacture extremely fine plastic tools for die attach of transistor, LED and other small die applications. Pick-up tools with tip sizes as small as 0.20 x 0.10mm (8 x 4 mils) OD x ID, together with materials which withstand 480 deg. C, allow these tools to be used for both eutectic and epoxy die attach. The 11-072 tool is designed as a replaceable tip, eliminating the need for tedious set-up and machine re-calibration when changing tools.
Note : No.1 – 14 are Standard Sizes.
No.15 – 21 are Custom Sizes.
Material Code : 11(Brown) 11A(Black)
| No. | Part No. | A Inch | A mm | B Inch | B mm |
|---|---|---|---|---|---|
| 1 | 11-072-01 | Available as PT1-30-15 | |||
| 2 | 11-072-02 | Available as PT1-40-18 | |||
| 3 | 11-072-03 | .020 | 0.50 | .008 | 0.20 |
| 4 | 11-072-04 | .030 | 0.75 | .016 | 0.40 |
| 5 | 11-072-05 | Available as PT1-60-30 | |||
| 6 | 11-072-06 | .040 | 1.00 | .020 | 0.50 |
| 7 | 11-072-07 | .050 | 1.25 | .028 | 0.70 |
| 8 | 11-072-08 | .060 | 1.50 | .035 | 0.90 |
| 9 | 11-072-09 | .070 | 1.75 | .047 | 1.20 |
| 10 | 11-072-10 | .080 | 2.00 | .055 | 1.40 |
| 11 | 11-072-11 | .090 | 2.25 | .063 | 1.60 |
| 12 | 11-072-12 | .100 | 2.50 | .070 | 1.80 |
| 13 | 11-072-13 | .110 | 2.75 | .079 | 2.00 |
| 14 | 11-072-14 | .120 | 3.00 | .079 | 2.00 |
| 15 | 11-072-15 | .018 | 0.45 | .008 | 0.20 |
| 16 | 11-072-16 | .010 | 0.25 | .006 | 0.15 |
| 17 | 11-072-17 | .010 | 0.25 | .004 | 0.10 |
| 18 | 11-072-18 | .008 | 0.20 | .004 | 0.10 |
| 19 | 11-072-19 | Available as PT1-50-25 | |||
| 20 | 11-072-20 | .012 | 0.30 | .007 | 0.18 |
| 21 | 11-072-xx | Specify | Specify | Specify | Specify |
