Micro-Rubber Tips(R7 Series)

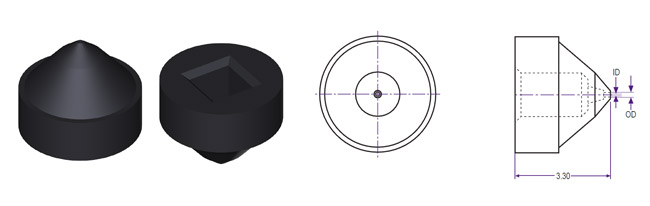

We manufacture MicroRubber Tips™ used for die-attach or pick-and-place of LED’s, discrete devices or other small die applications. The MicroRubber™ Tip features a tip diameter of 0.21mm (8 mils) with a vacuum hole of 0.13mm (5 mils). Unlike plastic or metal tools, the compliant rubber material helps eliminate scratches, smears or other damage to the chip surface.The tip is replaceable and fits any of the 12U3 or 12U1 style holders made by Micro-Mechanics. Together with an ultra-clean, static dissipative material, the MicroRubber™ Tip is the perfect solution for improved assembly yield.

No. Part No. OD Inch OD mm ID Inch ID mm Holder
1 R7M-0021-0 .008 0.21 .005 0.13 12U3
2 R7M-0025-0 .010 0.25 .006 0.15 12U3
3 R7M-0030-0 .012 0.30 .008 0.20 12U3
4 R7M-0038-0 .015 0.38 .006 0.15 12U3
5 R7M-0040-0 .016 0.40 .012 0.30 12U3

Packing: 20 pieces per vial.
