13-124-XX Rubber Tips
for optimum processing of small die
After years of manufacturing rubber tips for die sizes 0.75mm (30 mils) and larger, we’ve developed a new series of ultra-small rubber tips as small as 0.25mm (10 mils) in diameter. Designed for LED, RF and other small die applications, the compliant rubber tip helps eliminate die damage during pick-up when compared to plastic or metallic tools.
Material Specifications
Hardness: 79 Shore A
Heat resistance: 130 deg. C
Static dissipation : 0.01 to 0.03 sec.
Ionic purity: less than 10 ppm
Static dissipation measured as time to dissipate a charge from +/-5000 V. Ionic purity measured by boiling rubber in DI water and analyzing the water extract for fluoride, bromide, chloride, potassium, nitrate, phosphate, sulphate, sodium and silicon.

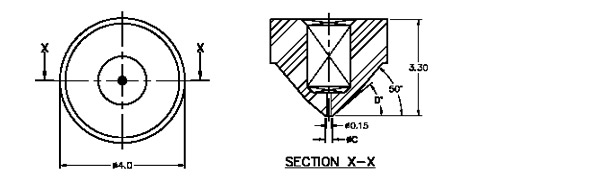

| No. | Part No. | ØC mm | D˚ | Holder |
|---|---|---|---|---|
| 1 | 13-124-01 | 0.25 | 40 | 12U1/12U3 |
| 2 | 13-124-02 | 0.38 | 40 | 12U1/12U3 |
| 3 | 13-124-03 | 0.64 | 40 | 12U1/12U3 |
| 4 | 13-124-05 | 0.46 | 40 | 12U1/12U3 |
| 5 | 13-124-06 | 0.25 | 40 | 12U1/12U3 |
| 6 | 13-124-07 | 0.33 | 40 | 12U1/12U3 |
| 7 | 13-124-10 | 0.41 | 40 | 12U1/12U3 |
Packing: 20 pieces per vial.
