Multi-Needle Dispensing Nozzles (Page 1)

SDT Multi-Needle Dispensing Nozzles
– fast access to optimized dispensing



Our target is to supply dispensing nozzles which produce optimum fillet, coverage and bond-line conditions. Based on know-how gained from designing nearly 50,000 nozzles, we have developed design rules for most adhesives. When combined with precision manufacturing, our goal is rapid delivery of optimized dispensing.



Available Tubing Sizes
We manufacture a range of tubing sizes used in our multi-needle nozzles. Designed for repeatable dispensing conditions, the OD and ID dimensions are controlled to less than +/- 0.020 mm.

Packing: 20 pieces per plastic box.

No. Gauge OD ID
Inch mm Inch mm
1 11 .120 3.06 .104 2.64
2 12 .108 2.75 .086 2.18
3 13 .094 2.40 .076 1.94
4 14 .083 2.10 .065 1.64
5 15 .072 1.83 .056 1.43
6 16 .065 1.65 .051 1.30
7 17 .059 1.49 .044 1.11
8 18 .049 1.25 .035 0.90
9 19 .043 1.08 .030 0.75
10 20 .035 0.90 .026 0.65
11 21 .032 0.82 .020 0.50
12 22 .028 0.72 .018 0.45
13 23 .026 0.65 .016 0.40
14 24 .022 0.56 .014 0.35
15 25 .019 0.50 .012 0.30
16 26 .018 0.45 .010 0.26
17 27 .016 0.40 .008 0.20
18 28 .014 0.36 .007 0.18
19 30 .012 0.30 .006 0.16
20 32 .010 0.23 .004 0.10

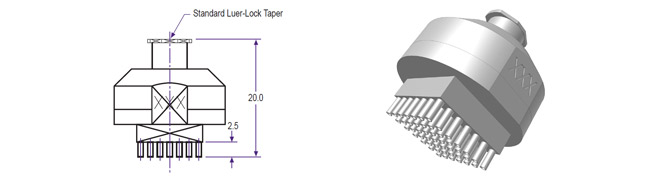

SDT-01 (Universal)

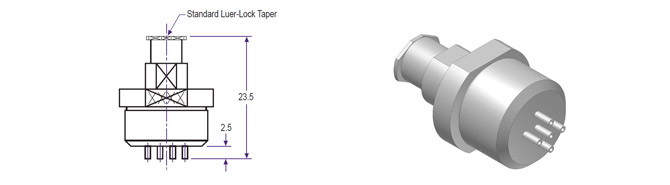

SDT-10 (ASM AD809)

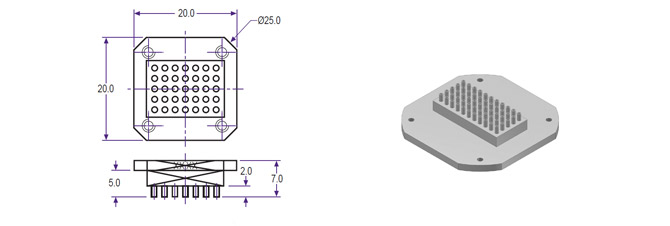

SDT-227 (Alphasem/ Body)

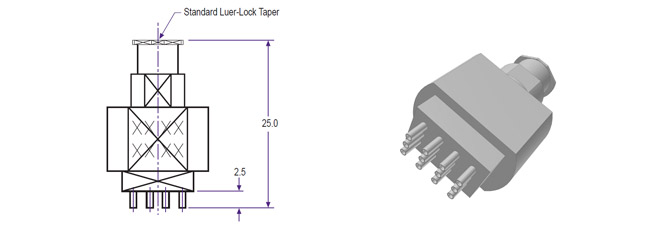

SDT-06 (Universal)

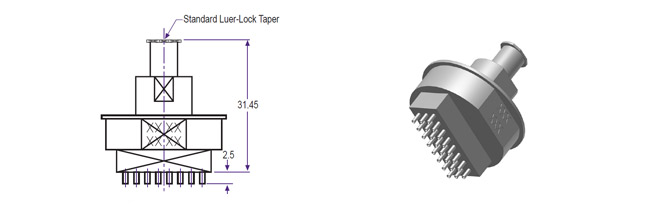

SDT-63 (Shinkawa)

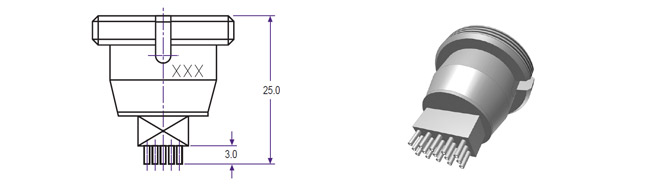

SDT-19 (ESEC 2006)
