We supply replacement O-Ring and V-ring used in Die bonder from Esec, Alphasem, and Nichiden. Correct material and hardness selection ensure a good sealing effect.

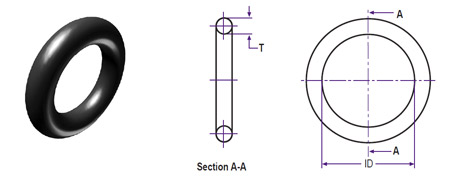

| No. | Part No. | ID mm | T mm |
|---|---|---|---|
| 1 | 13-094-01 | 6.00 | 1.00 |
| 2 | 13-094-02 | 15.00 | 1.60 |
| 3 | 13-094-03 | 17.00 | 1.00 |
| 4 | 13-094-04 | 25.00 | 0.80 |
| 5 | 13-094-05 | 22.00 | 1.00 |
| 6 | 13-094-06 | 1.15 | 1.00 |
| 7 | 13-094-07 | 9.25 | 1.78 |
| 8 | 13-094-08 | 8.00 | 1.00 |
| 9 | 13-094-09 | 7.10 | 1.60 |
| 10 | 13-094-10 | 5.80 | 1.90 |
| 11 | 13-094-11 | 50.00 | 2.00 |
| 12 | 13-094-12 | 2.00 | 1.00 |
| 13 | 13-094-13 | 1.50 | 1.00 |
| 14 | 13-094-14 | 9.10 | 1.60 |
| 15 | 13-094-15 | 14.10 | 1.60 |
| 16 | 13-094-16 | 25.00 | 1.60 |
| 17 | 13-094-17 | 20.00 | 1.50 |
| 18 | 13-094-18 | 16.00 | 1.00 |
| 19 | 13-094-19 | 18.00 | 1.00 |
| 20 | 13-094-20 | 15.00 | 1.40 |
| 21 | 13-094-21 | 11.00 | 1.00 |
| 22 | 13-094-22 | 15.00 | 1.00 |
| 23 | 13-094-23 | 11.00 | 2.00 |
| 24 | 13-094-24 | 10.82 | 1.78 |
| 25 | 13-094-25 | 3.00 | 1.00 |
| 26 | 13-094-26 | 11.00 | 1.50 |
| 27 | 13-094-27 | 36.00 | 1.78 |
| 28 | 13-094-28 | 37.10 | 1.60 |
| 29 | 13-094-29 | 13.00 | 1.00 |
| 30 | 13-094-30 | 3.10 | 1.60 |
| 31 | 13-094-31 | 2.50 | 0.70 |
| 32 | 13-094-32 | 10.10 | 1.60 |
| 33 | 13-094-33 | 11.10 | 1.60 |
| 34 | 13-094-34 | 23.00 | 1.50 |
| 35 | 13-094-35 | 6.50 | 1.50 |
| 36 | 13-094-36 | 12.42 | 1.78 |
