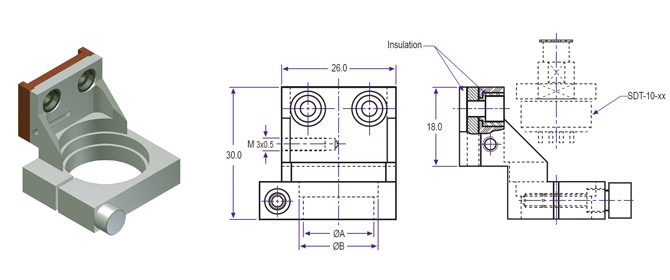

We design and manufacture an adaptor for the ASM AD809 die-attach machine for use with the original SDT-10 ASM dispensing body.
| No. | Part No. | Description | ØA | ØB | Nozzle Body |
|---|---|---|---|---|---|
| 1 | 228-010-01 | Nozzle Adaptor | 12.00 | 14.00 | SDT-10-01 |
| 2 | 228-010-02 | Nozzle Adaptor | 16.00 | 18.00 | SDT-10-02 |
| 3 | 228-010-03 | Nozzle Adaptor | 18.00 | 20.00 | SDT-10-03 |
