R7 Dome LED-CN03

Introducing a new series of application specific Rubber Tips tailored for the pick-and-place application of dome shaped LED products.

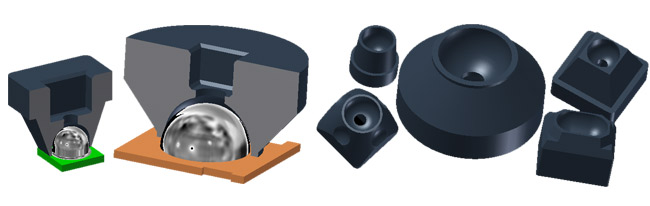

After intensive research and collaboration efforts with OEMs supplying these dome shaped LEDs, we have developed the know-how on the design and a specialized manufacturing process for these rubber tips. A new range of rubber tips with a distinctive dome design for the pick and place application of dome shaped LED products in both SMT and back-end semiconductor equipment.


We have a wide range of size and shape to cater for the different LED products. For technical drawing and pricing, kindly contact a Micro-Mechanics office nearest to you.

Part No: R7/8-xxxx-xxxx

Material Specifications

Hardness: 79 Shore A
Heat resistance: 130 deg. C
Static dissipation : 0.01 to 0.03 sec.
Ionic purity: less than 10 ppm

No. Part No. Relief n (Dome) Overall Height
1 R7S-0300-0300-0 2.70 4.80
2 R7S-0331-0 2.95 4.30
3 R7S-0457-0313-1 2.80×4.24 4.30
4 R7S-0700-0 6.00 6.00
5 R8S-0300-0 2.60 3.70

Packing: 20 pieces per vial.
