Replaceable-Rubber Tip (R3-Rectangular)
Aspect Ratio 1:1.5

R3 Rubber Tips

a new age in performance, quality and cost

The R3 rubber tip offers outstanding quality and performance features at a “use and throw” price. The pick-up tip has a relieved tip surface which minimizes surface contact with the die. Precision tolerances of +/-0.025 to 0.050mm ensure a repeatable setup when changing tips, while embossed code numbers help line personnel with identification and control. Together with proprietary ultrapure and antistatic rubber, the R3 tip is ideal for die attach in today’s assembly cleanroom.

Material Specifications

Hardness: 79 Shore A
Heat resistance: 130 deg. C
Static dissipation : 0.01 to 0.03 sec.
Ionic purity: less than 10 ppm

Static dissipation measured as time to dissipate a charge from +/-5000 V. Ionic purity measured by boiling rubber in DI water and analyzing the water extract for fluoride, bromide, chloride, potassium, nitrate, phosphate, sulphate, sodium and silicon.

R3 Custom Tips

In addition to our extensive range of standard R3 tips, we design and manufacture custom rubber tips and parts. Our expertise includes the design and manufacture of molds for small, high-precision parts.

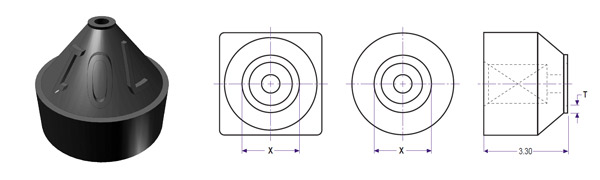

No. Part No. X Inch X mm Y Inch Y mm T Inch T mm Holder
1 R3-30 .030 0.75 .045 1.15 .004 0.10 12U3
2 R3-31 .039 1.00 .059 1.50 .006 0.15 12U3
3 R3-32 .049 1.25 .073 1.85 .006 0.15 12U3
4 R3-33 .059 1.50 .089 2.25 .010 0.25 12U3
5 R3-34 .069 1.75 .102 2.60 .010 0.25 12U3
6 R3-35 .079 2.00 .118 3.00 .016 0.40 12U3
7 R3-36 .089 2.25 .128 3.25 .016 0.40 12U3
8 R3-37 .098 2.50 .148 3.75 .016 0.40 12U3
9 R3-38 .118 3.00 .177 4.50 .020 0.50 12U3
10 R3-39 .138 3.50 .207 5.25 .020 0.50 12U3
11 R3-40 .158 4.00 .236 6.00 .020 0.50 12U3
12 R3-41 .177 4.50 .266 6.75 .020 0.50 12U3
13 R3-42 .197 5.00 .295 7.50 .020 0.50 12U3
14 R3-43 .236 6.00 .354 9.00 .020 0.50 12C3
15 R3-44 .276 7.00 .413 10.50 .020 0.50 12C3
16 R3-45 .315 8.00 .472 12.00 .020 0.50 12C3
17 R3-47 .394 10.00 .591 15.00 .020 0.50 12E3
18 R3-xx Specify Specify Specify Specify Specify Specify Specify

Packing: 20 pieces per vial.
