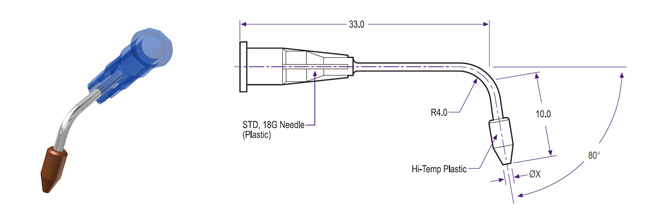

We design and manufacture the VW-11 vacuum wand for manual die pick-up or attach. The VW-11 may also be used for high-temperature applications as the tip material withstands 480 deg. C.
| No. | Part No. | X Inch | X mm |
|---|---|---|---|
| 1 | VW-11-015 | .015 | 0.40 |
| 2 | VW-11-020 | .020 | 0.50 |
| 3 | VW-11-030 | .030 | 0.75 |
| 4 | VW-11-040 | .040 | 1.00 |
| 5 | VW-11-050 | .050 | 1.25 |
| 6 | VW-11-060 | .060 | 1.50 |
| 7 | VW-11-080 | .080 | 2.00 |
| 8 | VW-11-100 | .100 | 2.50 |
| 9 | VW-11-120 | .120 | 3.00 |
| 10 | VW-11-140 | .140 | 3.50 |
| 11 | VW-11-160 | .160 | 4.00 |
| 12 | VW-11-200 | .200 | 5.00 |
| 13 | VW-xx-xxx | Specify | Specify |
