Vacuum-Wand Tools

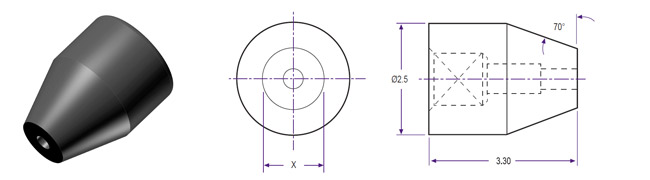

We manufacture a series of rubber tips (R2) used specifically for manual die handling. The R2 tips have a smaller body (2.5mm) and a facet of 70 degrees, facilitating manual viewing and pick-up. The R2 tips are available from 0.025 to 0.080 inch (0.63 to 2.03mm).
| No. | Part No. | X Inch | X mm | Holder |
|---|---|---|---|---|
| 1 | R2-025 | .025 | 0.63 | 12D |
| 2 | R2-030 | .030 | 0.76 | 12D |
| 3 | R2-040 | .040 | 1.02 | 12D |
| 4 | R2-050 | .050 | 1.27 | 12D |
| 5 | R2-060 | .060 | 1.52 | 12D |
| 6 | R2-070 | .070 | 1.78 | 12D |
| 7 | R2-080 | .080 | 2.03 | 12D |
| 8 | R1-090 | .090 | 2.29 | 12U1 |
| 9 | R1-100 | .100 | 2.54 | 12U1 |
| 10 | R1-110 | .110 | 2.79 | 12U1 |
| 11 | R1-120 | .120 | 3.05 | 12U1 |
| 12 | R1-130 | .130 | 3.30 | 12U1 |
| 13 | R1-140 | .140 | 3.56 | 12U1 |
| 14 | R1-150 | .150 | 3.81 | 12U1 |
| 15 | R1-160 | .160 | 4.06 | 12U1 |
| 16 | R1-180 | .180 | 4.57 | 12U1 |
| 17 | R1-200 | .200 | 5.08 | 12U1 |
| 18 | R1-220 | .220 | 5.59 | 12C |
| 19 | R1-240 | .240 | 6.10 | 12C |
| 20 | R1-260 | .260 | 6.60 | 12C |
| 21 | R1-280 | .280 | 7.11 | 12C |
| 22 | R1-300 | .300 | 7.62 | 12C |
| 23 | R1-320 | .320 | 8.13 | 12C |
| 24 | R1-340 | .240 | 8.64 | 12C |
| 25 | R1-360 | .360 | 9.14 | 12C |
| 26 | R1-380 | .380 | 9.65 | 12C |
| 27 | R1-400 | .400 | 10.16 | 12C |
| 28 | R1-420 | .420 | 10.67 | 12C |
| 29 | R1-440 | .440 | 11.18 | 12C |
| 30 | R1-460 | .460 | 11.68 | 12C |
| 31 | R1-480 | .480 | 12.00 | 12C |
