We manufacture wire-cutting blades used on the large wire wedge bonders. Our blades feature an improved material that results in better cutting performance and longer life. Together with competitive pricing, our aim is to improve quality and reduce cost.

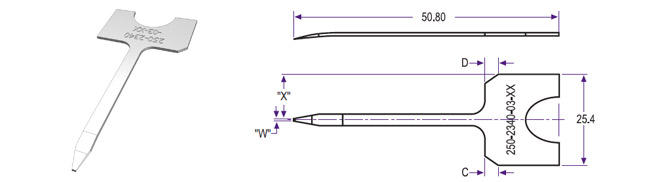

No. | Part No. | W (mm) | X (mm) | C | D |
---|---|---|---|---|---|
1 | 250-2340-03-01 | 1.00 | 12.20 | No Chamfer | No Chamfer |
2 | 250-2340-03-02 | 0.51 | 12.45 | 2.5 x 45° | No Chamfer |
3 | 250-2340-03-03 | 0.80 | 12.30 | 2.5 x 45° | No Chamfer |
4 | 250-2340-03-04 | 0.58 | 12.41 | 2.5 x 45° | No Chamfer |
5 | 250-2340-03-05 | 0.71 | 12.35 | No Chamfer | No Chamfer |
6 | 250-2340-03-06 | 0.80 | 12.30 | No Chamfer | No Chamfer |
7 | 250-2340-03-07 | 0.80 | 12.30 | No Chamfer | 2.5 x 45° |
8 | 250-2340-03-08 | 0.56 | 12.37 | No Chamfer | 2.5 x 45° |
